Compact Design. Controlled Torque. Reliable Performance.

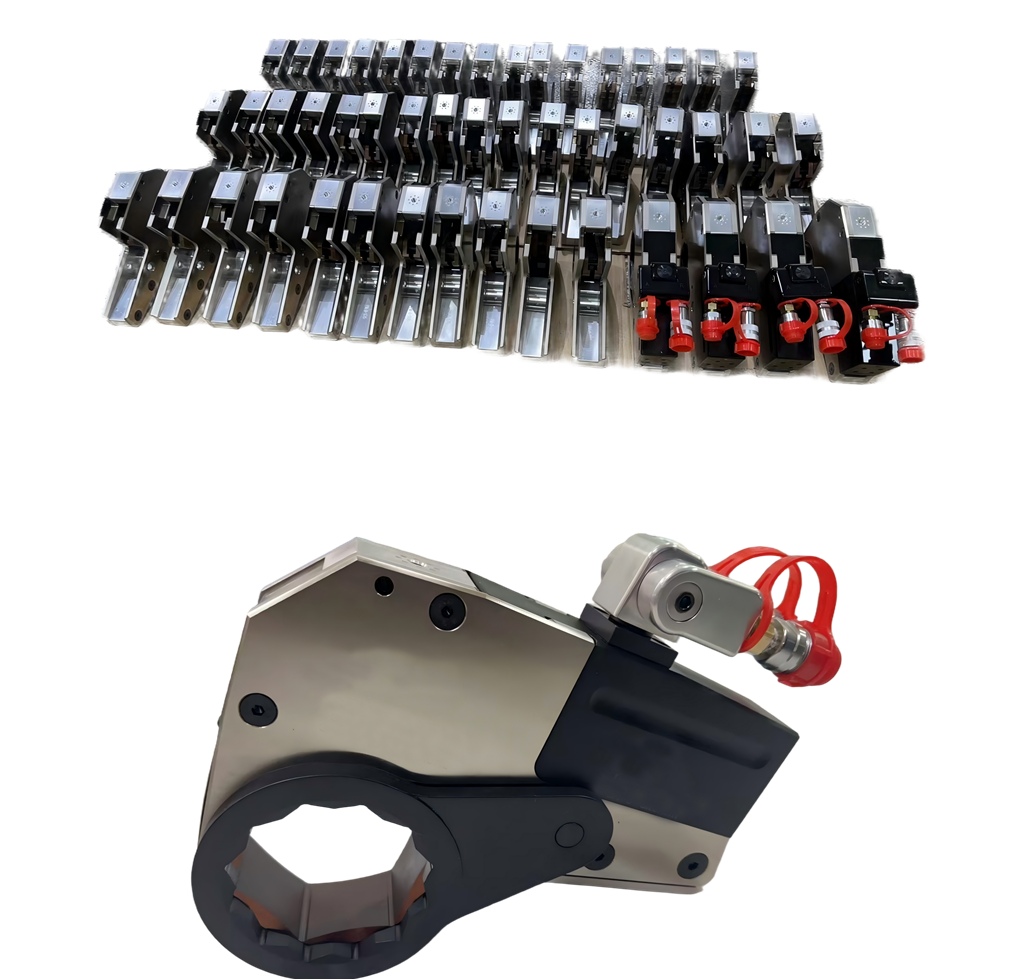

The XLCT series is a low-profile hydraulic torque wrench designed for controlled tightening and loosening of hexagonal nuts and bolts, particularly where overhead clearance or access around the fastener is limited. Its hexagonal cassette engages directly with the nut, providing a compact solution for flange connections and other confined bolting applications.

Powered by an external hydraulic pump, the tool converts hydraulic pressure into rotational torque through an internal piston and ratchet mechanism. Successive hydraulic cycles rotate the fastener in controlled increments. The required tightening torque is set by adjusting the pump pressure according to the pressure–torque chart for the selected tool model.

The XLCT series combines an aluminium–titanium alloy body with high-strength alloy steel components. Nickel-plated components provide corrosion resistance for demanding industrial environments. The low-profile configuration helps the tool fit into restricted spaces while maintaining direct engagement with the fastener.

During operation, the tool must be positioned against a suitable, stable reaction point. Correct cassette selection, full engagement with the nut, and secure reaction support are essential for controlled torque application.

The series is suitable for industrial bolting work in oil and gas, petrochemical processing, power generation, mining, heavy machinery, and plant maintenance.

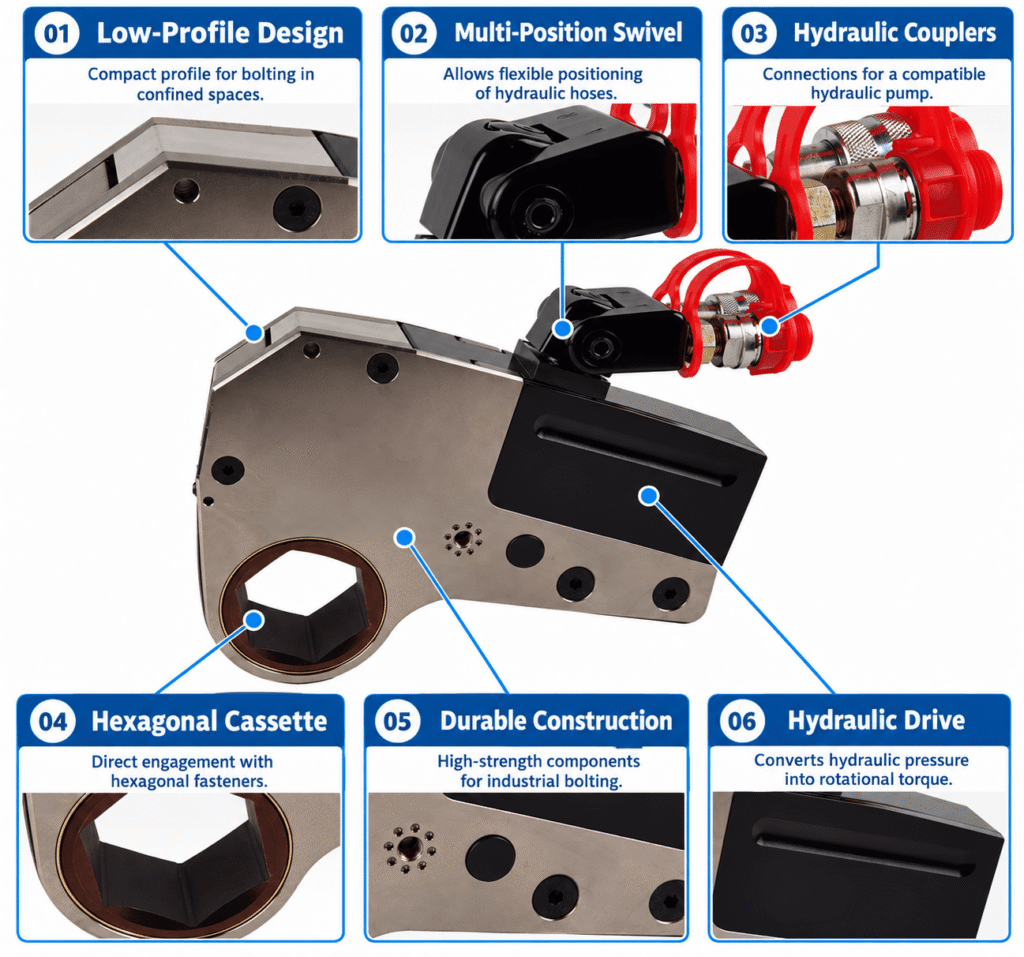

Technical Characteristics

• Low-Profile Hexagonal Design: Direct engagement with hexagonal fasteners for applications with limited clearance.
• Torque Coverage: Model-dependent ranges collectively cover 244–40,639 N·m. Select the model according to its individual torque range.
• Common Hex Size Coverage: Model-dependent sizes collectively cover 27–155 mm, subject to cassette selection.
• Durable Construction: Aluminium–titanium alloy and high-strength alloy steel.
• Corrosion Resistance: Nickel-plated components.
• Flexible Hose Positioning: Multi-position 360° × 360° swivel connection.
• Coupler Options: Threaded or quick-disconnect couplers.
• OEM Options: Custom designs and colour options are available.

System Requirements

The XLCT wrench requires a compatible hydraulic torque wrench pump, pressure-rated hydraulic hoses, matching couplers, and a hexagonal cassette sized for the fastener. All hydraulic components must be suitable for the operating pressure.

For tightening, use the pressure–torque chart supplied for the selected model. Ensure that the cassette fully engages the nut and that the reaction surface can safely withstand the applied load. Keep hands clear of the reaction area and moving components throughout operation.

Parameter	2XLCT	4XLCT	8XLCT	14XLCT	18XLCT	30XLCT
Min. torque (N·m)	244	489	1017	1724	2247	4064
Max. torque (N·m)	2534	5392	10452	17926	22899	40639
Min. torque (ft·lb)	180	361	751	1273	1658	2997
Max. torque (ft·lb)	1870	3979	7714	13233	16900	29974
Max. working pressure (bar)	700	700	700	700	700	700
Output accuracy	±3%	±3%	±3%	±3%	±3%	±3%
Tool weight (kg)	2.2	5	9.6	16.9	22.9	38
Tool weight (lb)	5	11	21.2	37.5	50.7	83.1

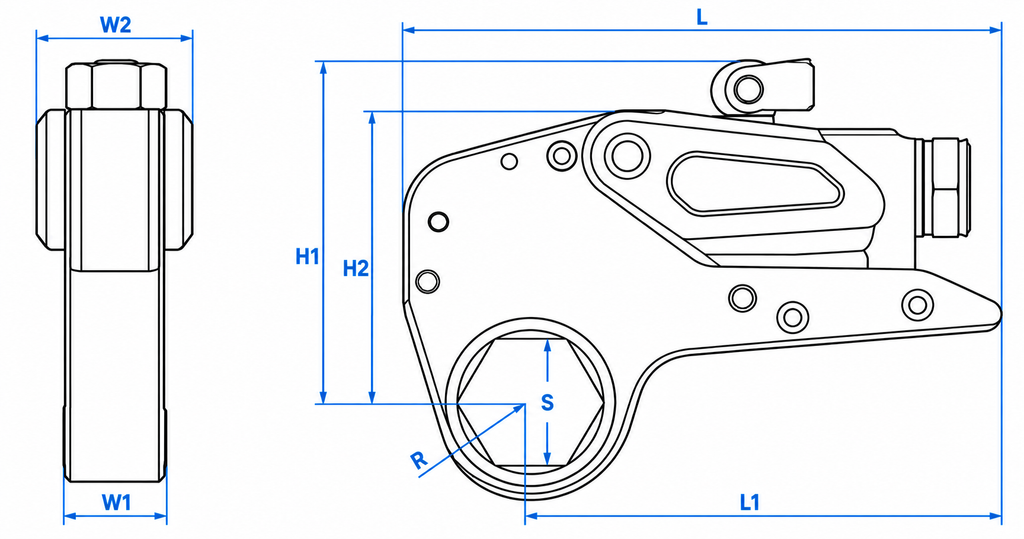

L (mm)	205	251.3	302.5	367	400.5	457.5
L1 (mm)	147	188	233	283	308	364
H1 (mm)	129	163	191	223	246	282
H2 (mm)	100	136	166.5	198	224	265
W1 (mm)	32	41	53	64	70	84
W2 (mm)	50	66	83	99	110	132
R (mm)	41.3	53.8	68.8	85.3	98.8	115.8
Common hex size (mm)	27–50	27–65	50–90	85–115	95–135	100–155
Common hex size (in)	1 1/16–2	1 1/16–2 9/16	2–3 5/8	3 5/16–4 9/16	3 5/8–5 5/16	3 15/16–6 1/8
Repeatability*	100%	100%	100%	100%	100%	100%
Duty cycle*	100%	100%	100%	100%	100%	100%
