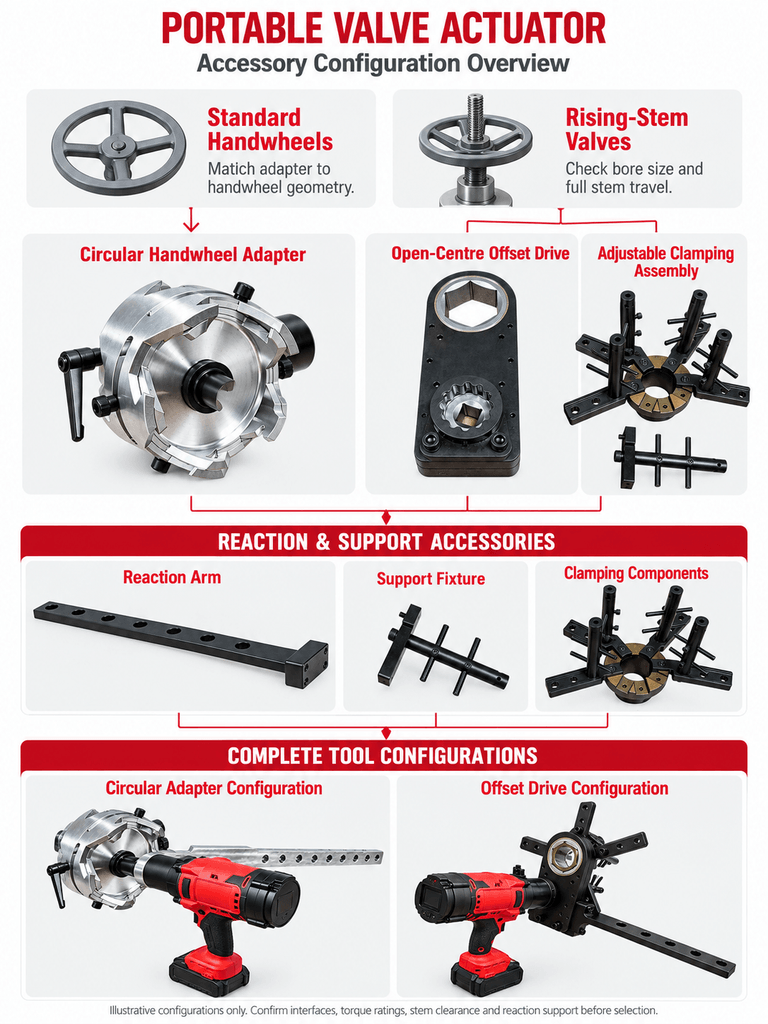

Flexible Connections for Different Valves and Working Conditions

A suitable accessory system extends the versatility of a portable valve actuator. Interchangeable adapters, offset drive attachments and torque reaction components help accommodate different handwheel designs, projecting valve stems and restricted installation spaces.

Adjustable Handwheel Adapters

Adjustable arms and engagement fingers connect the actuator to compatible valve handwheels. The contact positions can be configured to suit the handwheel diameter and spoke arrangement, providing stable engagement for opening and closing.

Open-Centre Drive Attachments

An open-centre drive attachment provides clearance for the projecting stem of a rising-stem valve. It transmits rotation to the handwheel or operating interface while allowing the stem to move through the central opening.

The bore diameter and available clearance must accommodate the valve stem throughout its full travel.

Offset Drive Adapters

Offset drive arrangements position the motor away from the valve’s operating axis, improving access where a projecting stem, adjacent pipework or surrounding equipment prevents direct alignment. They are particularly useful in compact equipment layouts and locations with limited overhead clearance.

Torque Reaction Arms

A reaction arm transfers operating reaction torque to a suitable support point, helping maintain tool stability and reduce the force carried by the operator. Perforated arms provide alternative attachment positions to suit different installation arrangements.

Support and Restraint Accessories

Compatible support fixtures, restraint straps and connecting hardware help secure the reaction system where required. Each component must be selected for the applied load and used with a stable, suitable anchoring point.

Drive Interfaces and Couplings

Matched sockets, couplings and mounting interfaces connect the actuator to compatible adapters or valve operating shafts. Correct interface selection supports alignment and controlled torque transmission.

Application-Specific Configurations

Accessory combinations can be selected to suit rising-stem valves, recessed handwheels, closely spaced pipework and other access constraints. Selection should consider the valve geometry, operating torque, drive interface and available reaction support.

One Portable Actuator. Multiple Connection Options.

Accessory availability depends on the selected configuration. Confirm compatibility, torque rating, engagement, stem clearance and reaction support before operation. An offset or geared attachment may change output speed, torque and rotation direction.e use. Turn count indicates rotational travel; valve opening percentage requires application-specific calibration.
